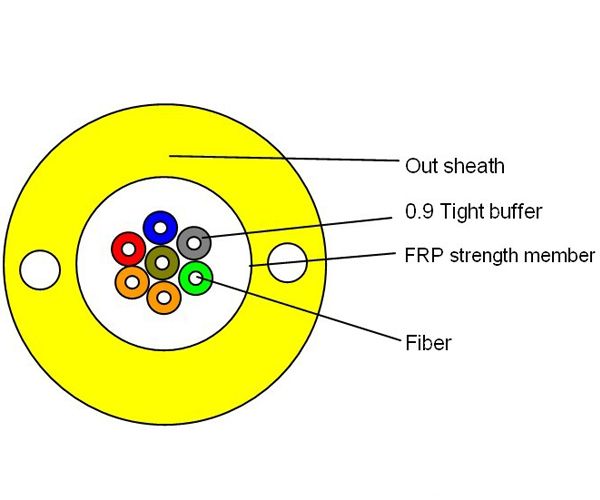

Non-metal Central Tight Tube Out Cable

http://www.chinaopticcable.com/datacache/pic/100_100_412fdebd5a8e3b30feda5c1a3843790f.jpg

Detailed Description

Product Name：Non-metal Central Tight Tube Out Cable

Model：indoor optic fiber

Number：I012

Application:

Application：
☆.Adopted to Outdoor distribution.
☆.Adop0ted to trunk power transmission system.
☆.access network and local network in high
electromagnetic interfering places.

Characteristics:

Characteristics：
☆.Non-metal strength member.
☆.More tight buffered design.
☆.Non-metal strength has an excellent anti-electromagnet ability.

Technical Parameters:
Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load （N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	（℃）
24	11	68.00	1200	500	1000	300	20D	10D	-40+60

Optical Characteristics
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A、B、C、D）		B1.1:Conventional fiber
		G.653		B2: Zero dispersion shifted
		G.654		B1.2 :Cut-off wavelength shifted
		G.655		B4: Main technical data for positive dispersion shifted single-mode fiber
