12 Core Distribution Loose Tube Optical Cable

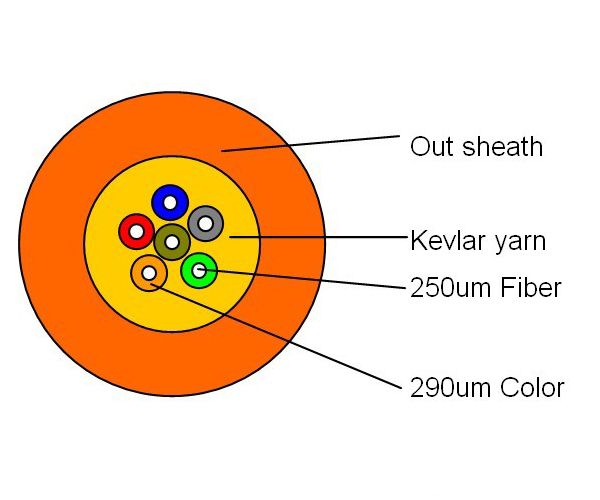

http://www.chinaopticcable.com/datacache/pic/100_100_7648479d1b1169a4e919f640c00e8cc7.jpg

Detailed Description

Product Name：12 Core Distribution Loose Tube Optical Cable

Model：indoor optic cable

Number：I013

Application:

Application：
☆.Adopted to indoor distribution.
☆.As pigtail of communication equipment.
☆.Suitable for communication equipment served.
☆.Suitable for floor connection.

Characteristics:

Characteristics：
☆.Hight strength kevlar yarn member.
☆.More tight buffered design.
☆.Round construction.
☆.Saft. Easy to strip.

Technical Parameters:
Cable Count	Out sheath Diameter	Fiber Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load （N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(UM)	(KG)	short term	long term	short term	long term	short term	long term	（℃）
2	2.0	250	4.25	300	150	300	150	20D	10D	-40+60
4	2.0	250	4.25	300	150	300	150	20D	10D	-40+60
6	3.0	250	7.5	300	150	300	150	20D	10D	-40+60
8	3.0	250	7.5	300	150	300	150	20D	10D	-40+60
12	3.0	250	7.5	300	150	300	150	20D	10D	-40+60
24	3.0	250	8	300	150	300	150	20D	10D	-40+60

Optical Characteristics
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A、B、C、D）		B1.1:Conventional fiber
		G.653		B2: Zero dispersion shifted
		G.654		B1.2 :Cut-off wavelength shifted
		G.655		B4: Main technical data for positive dispersion shifted single-mode fiber
