GJFJV(Single-Fiber)

http://www.chinaopticcable.com/datacache/pic/100_100_9765ab08505ef3277a17a1115778b5f8.jpg

Detailed Description

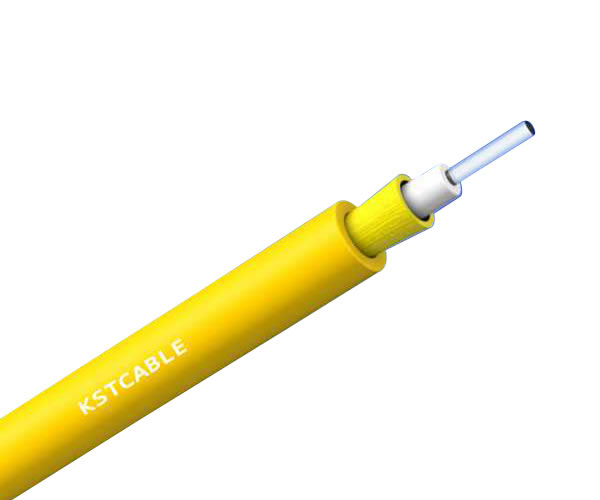

Product Name：GJFJV(Single-Fiber)

Model：Single-Fiber optical Cable for Indoor

Number：I003

Application:

☆.Adopted to indoor distribution..
☆.As pigtail of communication equipment.
☆.Suitable for communication equipment served.
☆.Can be installed conveniently and perated simply.

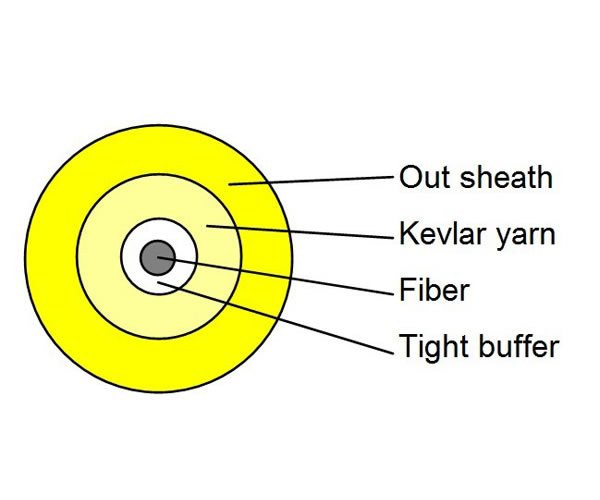

Characteristics:

☆.Hight strength kevlar yarn member.
☆.High quality tight buffered or loose tube.
☆.Soft and easy to strip.
☆.Round construction.

Technical Parameters:

Out sheath Diameter	Tight buffer Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load （N/100mm)		Minimum Bending Radius (MM)		Storage temperature
（MM)	（MM)	（KG)	short term	long term	short term	long term	short term	long term	（℃）
1.6	0.6	2.80	150	80	500	100	20D	10D	-20+60
1.8	0.6	3.00	150	80	500	100	20D	10D	-20+60
2.0	0.9	4.25	150	80	500	100	20D	10D	-20+60
2.4	0.9	5.00	150	80	500	100	20D	10D	-20+60
2.8	0.9	6.60	150	80	500	100	20D	10D	-20+60
3.0	0.9	7.00	150	80	500	100	20D	10D	-20+60

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A、B、C）		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657（A1、A2 、B3）		B4: Main technical data for positive dispersion shifted single-mode fiber
