Duplex Zipcord Armored(GJFJV)

http://www.chinaopticcable.com/datacache/pic/100_100_4dcf9eb2516e6b0b849af7f58030974d.jpg

Detailed Description

Product Name：Duplex Zipcord Armored(GJFJV)

Model：Duplex Zipcord Armored Indoor Cable

Number：I006

Application:

☆.Adopted to indoor distribution..
☆.As pigtail of communication equipment.
☆.Suitable for communication equipment served.
☆.Can be installed conveniently and perated simply.

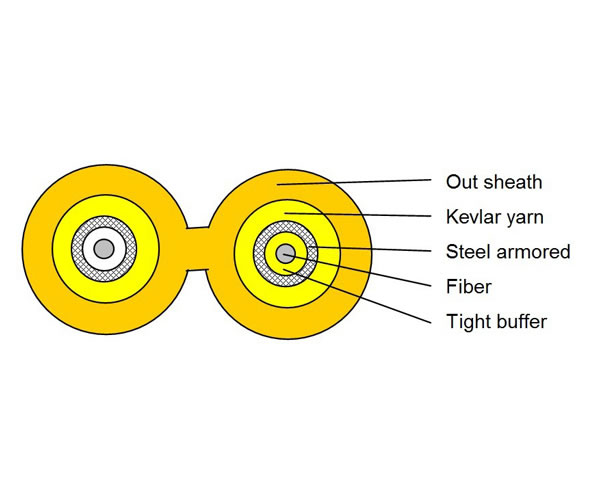

Characteristics:

☆.0.6 tight buffer fiber,
☆.Hight strength kevlar yarn member.
☆.Steel armored flexble tube.increase the cable\'s twist resistance.

Technical Parameters:

Out sheath Diameter	Tight buffer Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load （N/100mm)		Minimum Bending Radius (MM)		Storage temperature
（MM)	（MM)	（KG)	short term	long term	short term	long term	short term	long term	（℃）
2.0×4.2	0.6	31.00	1000	300	1000	500	20D	10D	-20+60
2.4×5.0	0.6	32.00	1000	300	1000	500	20D	10D	-20+60
2.8×5.8	0.9	35.00	1000	300	1000	500	20D	10D	-20+60
3.0×6.2	0.9	35.00	1000	300	1000	500	20D	10D	-20+60

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A、B、C）		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657（A1、A2 、B3）		B4: Main technical data for positive dispersion shifted single-mode fiber
