Flat Twin(GJFJV)

http://www.chinaopticcable.com/datacache/pic/100_100_692ef5947fd3528342204505e0e8999d.jpg

Detailed Description

Product Name：Flat Twin(GJFJV)

Model：Flat Twin Duplex Military Tactical Indoor Cable

Number：I008

Application:

☆.Adopted to indoor distribution..
☆.As pigtail of communication equipment.
☆.Suitable for communication equipment served.
☆.Can be installed conveniently and perated simply.

Characteristics:

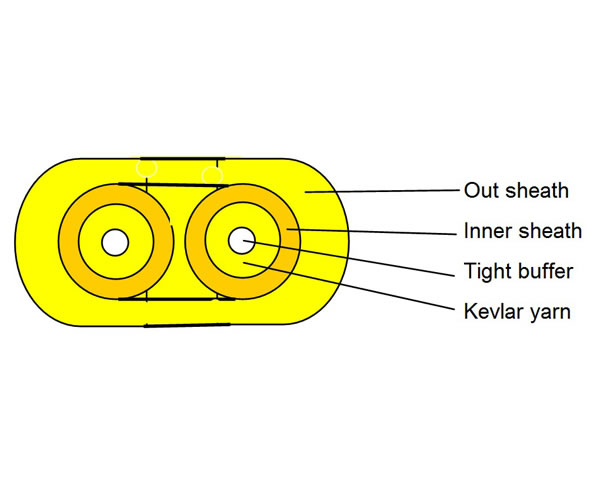

☆.Two single-fiber as basic unit .flat twin configuration.
☆.Single-cable with independent strength member.
☆.Tight buffer.(900um or 600um)

Technical Parameters:

Out sheath Diameter	Tight buffer Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load （N/100mm)		Minimum Bending Radius (MM)		Storage temperature
（MM)	（MM)	（KG)	short term	long term	short term	long term	short term	long term	（℃）
3.0×5.0	1.8	56.00	800	300	1000	500	20D	10D	-20+60
3.2×5.6	2.0	68.00	800	300	1000	500	20D	10D	-20+60
5.0×8.0	2.8	87.00	800	300	1000	500	20D	10D	-20+60

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A、B、C）		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657（A1、A2 、B3）		B4: Main technical data for positive dispersion shifted single-mode fiber
