GYDXTW

http://www.chinaopticcable.com/datacache/pic/100_100_d37dc28ff33ce737cbf11d8ba9e79fbb.jpg

Detailed Description

Product Name：Central Loose Tube Ribbon Fiber Out Cable

Model：GYDXTW

Number：O016

Application:

☆.Adopted to Outdoor distribution.
☆.Suitable for aerial .pipeline laying method.
☆.Long distance and local area network communication.

Characteristics:

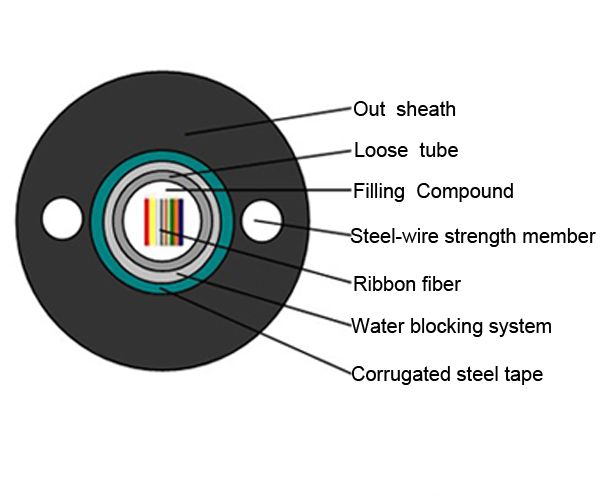

☆.Steel-wire parallel member.filler protect tube fiber steel tape amored.
☆.Adopt optic fiber ribbon .compact structure.light weight.
☆.Excellent mechanical and environmental performance.
☆.can be installed conveniently and operated simply.

Technical Parameters:

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load （N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	（MM)	（KG)	short term	long term	short term	long term	short term	long term	（℃）
24	15	240	1500	600	1000	300	20D	10D	-40+60
48	15	240	1500	600	1000	300	20D	10D	-40+60
60	15	240	1500	600	1000	300	20D	10D	-40+60
72	16	272	1500	600	1000	300	20D	10D	-40+60
84	16	272	1500	600	1000	300	20D	10D	-40+60
144	18	325	1500	600	1000	300	20D	10D	-40+60

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A、B、C）		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657（A1、A2 、B3）		B4: Main technical data for positive dispersion shifted single-mode fiber
