OPLC fiber composite cable

http://www.chinaopticcable.com/datacache/pic/100_100_d70ff5f9a15196d204d27dca33685150.jpg

Detailed Description

Product Name：OPLC optical composite cable

Model：Special Cable

Number：S005

Application:

☆.Suitable for a minefield and electronagnetic interference,seriously aera of cable distribution.
☆.Suitable for a minefield and electronagnetic
☆.Access network and local network in high eletromagnetic interfering places.

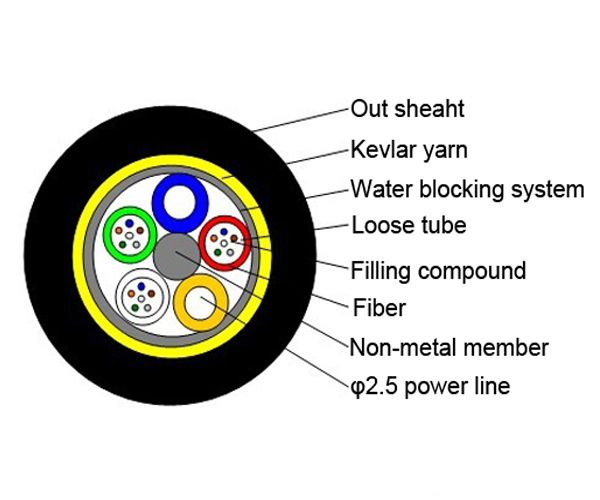

Characteristics:

☆.2.5MMCopper wire assembly，Non-metal strength member、filler protect loose tube fiber,Steel tape armord
☆.Kevlar strength，Loose tube layering。
☆.compact structure，Good ultra violet radiation resistant property。

Technical Parameters:

Cable Count	Out sheath Diameter	Innter sheath diameter	Weight	Minimmum allowable Tensile Strength(N)		Minimum allowable Crush Load(N/100mm)		Minimum Bending Radius(MM)		Storage temperature （℃）
Core	(mm)	(mm)	(Kg/Km)	Short term	long term	Short term	long term	Short term	long term	Storage temperature （℃）
12	12.5	2.5	98.0	1500	600	1000	300	20D	10D	-40+60
24	12.5	2.5	98.0	1500	600	1000	300	20D	10D	-40+60
48	12.5	2.5	98.0	1500	600	1000	300	20D	10D	-40+60

Optical Characteristics
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A、B、C、D）		B1.1:Conventional fiber
		G.653		B2: Zero dispersion shifted
		G.654		B1.2 :Cut-off wavelength shifted
		G.655		B4: Main technical data for positive dispersion shifted single-mode fiber

Tags： OPLC optical composite cable
