ADSS with grade A sheath (Parts) |
||||
|

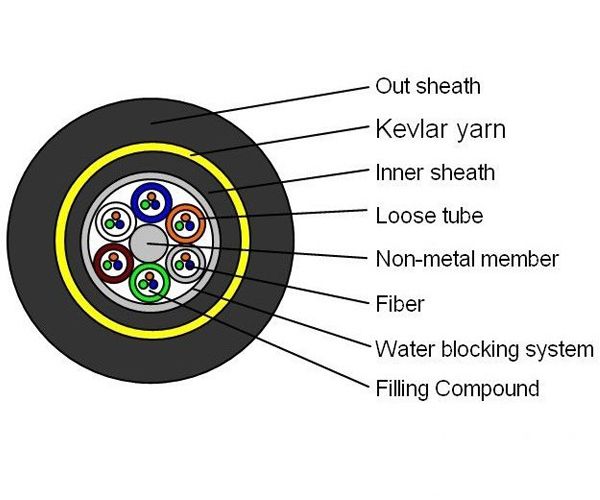

Structure drawing |
Order Type Model |
ADSS-PE 24 M15.5/ A |
ADSS-PE48 M17.7 / C |
ADSS-PE72 M21.2 / D |
|
|
Fiber count |
24fiber |
48fiber |
72fiber |
|
Size of tube |
φ2.1mm |
φ2.6mm |
φ3.0mm |
|
|
Cable diameter |
φ13.4mm |
φ14.9mm |
φ16.4mm |
|
|
Cable weight |
139kg/km |
172kg/km |
209kg/km |
|
|
RTS |
38.8kN |
44.3kN |
56.6kN |
|
|
Linear expansion coefficient |
2.2×10-6/℃ |
2.0×10-6/℃ |
1.8×10-6/℃ |
|
|
Young’s modulus |
16.5kN/mm2 |
17.5kN/mm2 |
18.6kN/mm2 |
|
|
ADSS with grade B sheath (parts) |
||||
|
Structure drawing |
Order Type Model |
ADSS-AT 24 M14 / A |
ADSS-AT48M15.2 / C |
ADSS-AT72 M21.2 / D |
|
|
Fiber count |
24fiber |
48fiber |
72fiber |
|
Size of tube |
φ2.1mm |
φ2.6mm |
φ3.0mm |
|
|
Cable diameter |
φ13.2mm |
φ14.3mm |
φ16.3mm |
|
|
Cable weight |
146kg/km |
169kg/km |
220kg/km |
|
|
RTS |
35kN |
37.9kN |
52.9kN |
|
|
Linear expansion coefficient |
4.5×10-6/℃ |
4.8×10-6/℃ |
3.6×10-6/℃ |
|
|
Young’s modulus |
15.5kN/mm2 |
14.9kN/mm2 |
17.9kN/mm2 |
|
|
ADSS with grade B sheath (parts) |
||
|
Structure drawing |
Order Type Model |
ADSS-AT144 M12.3 / D |
|
|
Fiber count |
144fiber |
|
Size of tube |
φ3.0mm |
|
|
Cable diameter |
φ20.7mm |
|
|
Cable weight |
344kg/km |
|
|
RTS |
30.8kN |
|
|
Linear expansion coefficient |
3.5×10-6/℃ |
|
|
Young’s modulus |
6.22kN/mm2 |
|
