Product Instruction:

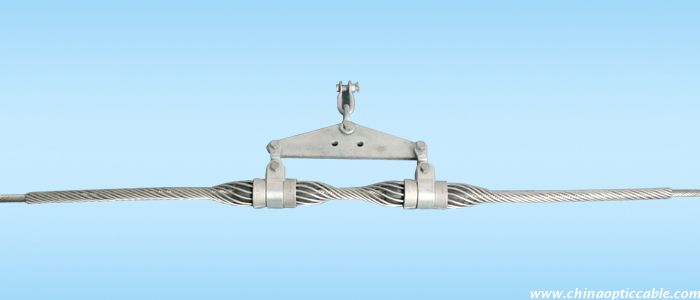

OPGW suspension clamp, adopting double-layer design, consists of outer preformed rod (dead end)/structural reinforcing rod in proper size and length, to pass axial load and disperse radial compressive stress, to reach inner reinforcing parts through plastic jacket, so as not to hurt the plastic jacket or inner optical fiber that are fragile and vulnerable. The clamp, which is anti-resistant excellently, includes outer preformed rod/structural reinforcing rod, two suspension clamps and matching connection hardware.
Function:
Intended on straight-line pole with a big height-difference and a span over 800m, one pole for one set
Parameter:
Configure model by cable diameter
Product Instruction:

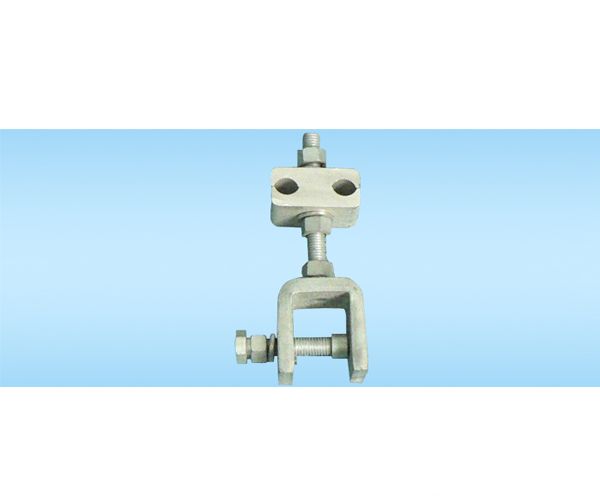

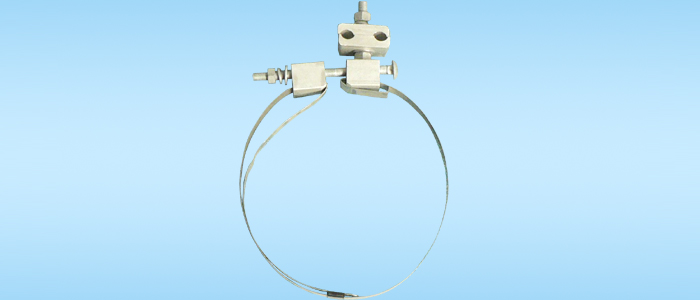

Intended to fix ADSS and OPGW on pole, applied to different cable diameters, motel-type for OPGW, rubber-type for ADSS, two kinds for pole and for tower, easy, quick and reliable to install, with a large range to regulate.
Function:
Intended to fix cable when down-lead or jump-joint, one cable of 1.5-2.0m for one set
Parameter:
Configure model by cable and pole diameter
Product Instruction:

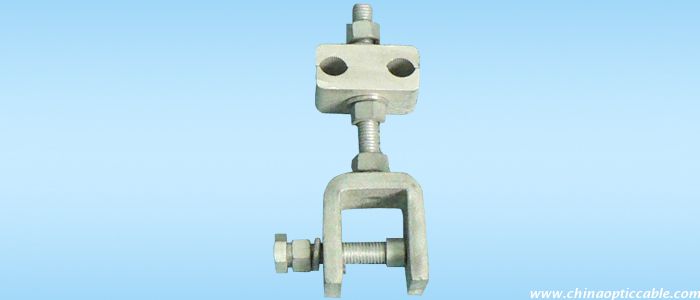

Intended to fasten ADSS and OPGW onto pole, applied to different cable diameters, metal type for OPGW, rubber type for ADSS, two kinds for pole and for tower, easy and reliable to install, with a wide range to adjust.
Function:
Intended to fasten cable when down lead and jump-joint, one 1.5-2.0m cable for one set
Parameter:
Configure model by cable and pole diameter
Product Instruction:

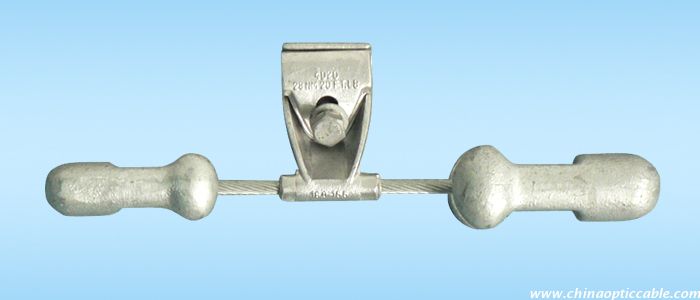

The 4D series of vibration damper is designed in a form of Stockbridge Tuning-Fork, 4 resonant frequencies with a range of 3-150Hz. Mainly intended to absorb vibration energy generated by wind blow.
Function:
Mostly used as vibration damper for OPGW, also for ADSS
Parameter:
Configure model by cabl Used to e diameter, RTS and unit weight
Product Instruction:

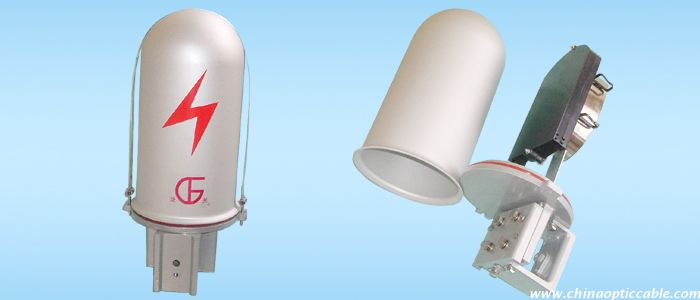

Used as direct joint and branch joint in cable project, the bullet type metal joint box is compact structurally, sealing well, easy to install, water tight, moisture proof, applied in various bad weather. Optical fiber’s bend radius is ≥ 45mm, the added loss of optical fiber management tray is ≤ 0.01dB.
Function:
metal joint box is intended to connect ADSS cable
Parameter:
Configure model by cable diameter, core number, port number and pole status
Product Instruction:

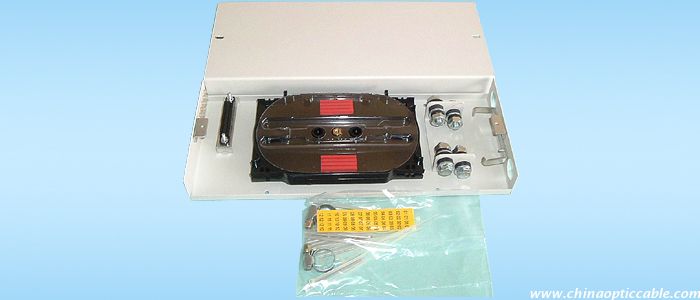

Intended to connect the drop-cable and optical transmitter and receiver.
Function:
Intended to distribute optical fibers in terminal machine room
Parameter:
Configure model by cable diameter, and core number
