Optical Splice Closure

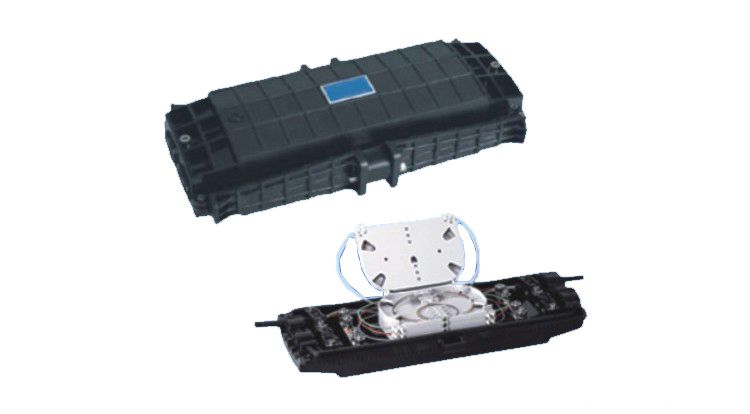

model	Size(mm)	Core capacity	Cable Port(max)	Max diameter Of cable(mm)	Splice Tray model	Core capacity Tray	Weight (kg)
CSC-1099	430 ×200	96	4	φ19	B	12-24	1.7

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
1	Appearance and configuration	Appearance	Shape integnity, No defect,color uniform	Meets the requirements	Qualification
		Optical Fibers Storage Set	Residual fiber length no less than 1.6m	＞1.6m
		Optical Fibers Storage Set	Residual fiber curvature Radius no less than 30mm	＞35mm
		Electric Connecting Set	Electnic connecting or shut off section in the box,ground lead-out section on the externl shell.	Meets the requirements
2	Seal performance	Charged with air which pressure is 60KPa±5KPa+65℃、20℃-40℃，2h10cycles,Allow air pressure change 5KPa,immersed in the water for 15min,no air bubbl escape		No air bubble escape,air pressure change is 4KPs	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
3	Insulated Resistance	After soaked into the water which is 1.5m deep for 24h,Insulated resistance≥2×10⁴MΩ	Between two metal sections	1×10⁶MΩ	Qualification
3	Insulated Resistance		Betwwen metal section and ground	1×10⁶MΩ	Qualification
4	Voltage Resisting Strength	After soaked into the water which is 1.5m deep for 24h,DC 15KV holding 1min,No breakage,no electric arc	Between two metal sections	No breakage No electric arc	Qualification
4	Voltage Resisting Strength		Betwwen metal section and ground	No breakage No electric arc	Qualification
5	Seal performance	Charged with air which pressure is 100KPa±5KPaimmersed in the water for 15min,no air bubble escape;After remove for 24hr,air pressure keeps unchanged		No air bubble escape,air press keeps unchanged	Qualification
6	Re-Seal performance	Repeat Seal performance 3 times,no air bubble escape;After remove for 24hr,air pressure keeps unchanged		No air bubble escape,air press keeps unchanged	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
7	Axis Tensile	For 800N axis strength Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged		Air press keeps unchanged	Qualification
8	Crush	For 2000N/100mm,crush force,Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged		Air press keeps unchanged	Qualification
9	Impact	16N·m,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification
10	Bending	150N,±45°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification
11	Torsion	50N,±90°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification

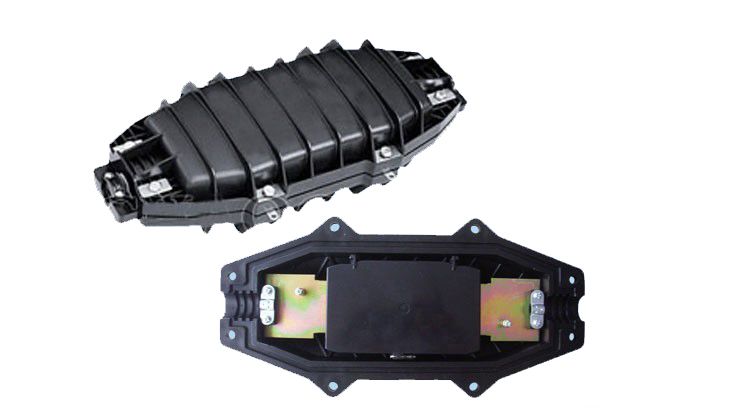

model	Size(mm)	Core capacity	Cable Port(max)	Max diameter Of cable(mm)	Splice Tray model	Core capacity Tray	Weight (kg)
CSC-1044	415 ×200 ×105	144	8	φ20	B	12-24	2.7

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
1	Appearance and configuration	Appearance	Shape integnity, No defect,color uniform	Meets the requirements	Qualification
		Optical Fibers Storage Set	Residual fiber length no less than 1.6m	＞1.6m
		Optical Fibers Storage Set	Residual fiber curvature Radius no less than 30mm	＞35mm
		Electric Connecting Set	Electnic connecting or shut off section in the box,ground lead-out section on the externl shell.	Meets the requirements
2	Seal performance	Charged with air which pressure is 60KPa±5KPa+65℃、20℃-40℃，2h10cycles,Allow air pressure change 5KPa,immersed in the water for 15min,no air bubbl escape		No air bubble escape,air pressure change is 4KPs	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
3	Insulated Resistance	After soaked into the water which is 1.5m deep for 24h,Insulated resistance≥2×10⁴MΩ	Between two metal sections	1×10⁶MΩ	Qualification
3	Insulated Resistance		Betwwen metal section and ground	1×10⁶MΩ	Qualification
4	Voltage Resisting Strength	After soaked into the water which is 1.5m deep for 24h,DC 15KV holding 1min,No breakage,no electric arc	Between two metal sections	No breakage No electric arc	Qualification
4	Voltage Resisting Strength		Betwwen metal section and ground	No breakage No electric arc	Qualification
5	Seal performance	Charged with air which pressure is 100KPa±5KPaimmersed in the water for 15min,no air bubble escape;After remove for 24hr,air pressure keeps unchanged		No air bubble escape,air press keeps unchanged	Qualification
6	Re-Seal performance	Repeat Seal performance 3 times,no air bubble escape;After remove for 24hr,air pressure keeps unchanged		No air bubble escape,air press keeps unchanged	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
7	Axis Tensile	For 800N axis strength Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged		Air press keeps unchanged	Qualification
8	Crush	For 2000N/100mm,crush force,Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged		Air press keeps unchanged	Qualification
9	Impact	16N·m,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification
10	Bending	150N,±45°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification
11	Torsion	50N,±90°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification

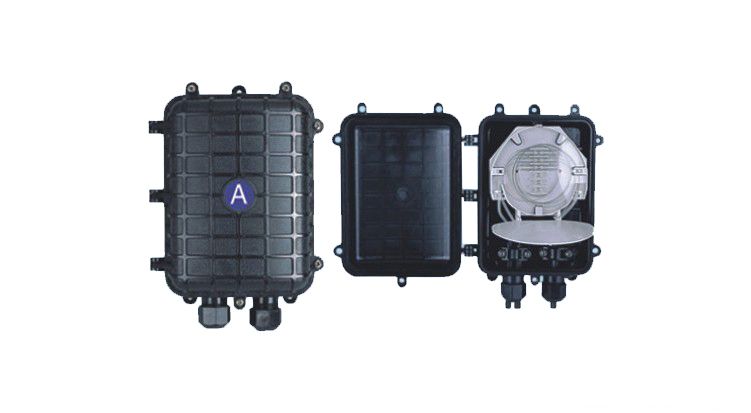

model	Size(mm)	Core capacity	Cable Port(max)	Max diameter Of cable(mm)	Splice Tray model	Core capacity Tray	Weight (kg)
CSC-1022	370 x155 ×120	96	4	φ 19	A1	12-24	1.9

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
1	Appearance and configuration	Appearance	Shape integnity, No defect,color uniform	Meets the requirements	Qualification
		Optical Fibers Storage Set	Residual fiber length no less than 1.6m	＞1.6m
		Optical Fibers Storage Set	Residual fiber curvature Radius no less than 30mm	＞35mm
		Electric Connecting Set	Electnic connecting or shut off section in the box,ground lead-out section on the externl shell.	Meets the requirements
2	Seal performance	Charged with air which pressure is 60KPa±5KPa+65℃、20℃-40℃，2h10cycles,Allow air pressure change 5KPa,immersed in the water for 15min,no air bubbl escape		No air bubble escape,air pressure change is 4KPs	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
3	Insulated Resistance	After soaked into the water which is 1.5m deep for 24h,Insulated resistance≥2×10⁴MΩ	Between two metal sections	1×10⁶MΩ	Qualification
3	Insulated Resistance		Betwwen metal section and ground	1×10⁶MΩ	Qualification
4	Voltage Resisting Strength	After soaked into the water which is 1.5m deep for 24h,DC 15KV holding 1min,No breakage,no electric arc	Between two metal sections	No breakage No electric arc	Qualification
4	Voltage Resisting Strength		Betwwen metal section and ground	No breakage No electric arc	Qualification
5	Seal performance	Charged with air which pressure is 100KPa±5KPaimmersed in the water for 15min,no air bubble escape;After remove for 24hr,air pressure keeps unchanged		No air bubble escape,air press keeps unchanged	Qualification
6	Re-Seal performance	Repeat Seal performance 3 times,no air bubble escape;After remove for 24hr,air pressure keeps unchanged		No air bubble escape,air press keeps unchanged	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
7	Axis Tensile	For 800N axis strength Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged		Air press keeps unchanged	Qualification
8	Crush	For 2000N/100mm,crush force,Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged		Air press keeps unchanged	Qualification
9	Impact	16N·m,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification
10	Bending	150N,±45°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification
11	Torsion	50N,±90°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification

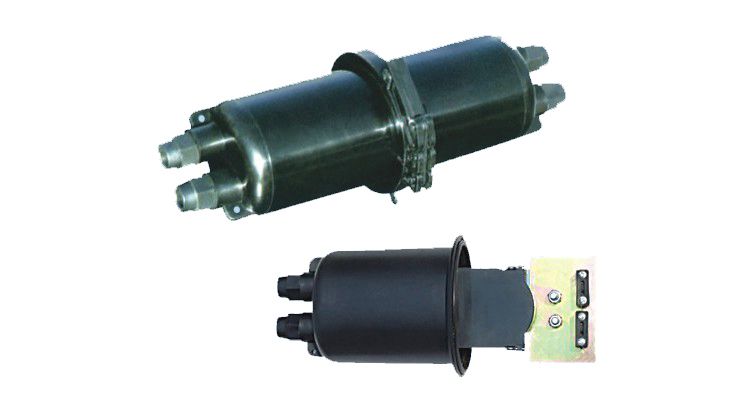

model	Size(mm)	Core capacity	Cable Port(max)	Max diameter Of cable(mm)	Splice Tray model	Core capacity Tray	Weight (kg)
CSC-1011	300 ×20 ×93	72	2	φ 19	F	6-12	1.45

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
1	Appearance and configuration	Appearance	Shape integnity, No defect,color uniform	Meets the requirements	Qualification
		Optical Fibers Storage Set	Residual fiber length no less than 1.6m	＞1.6m
		Optical Fibers Storage Set	Residual fiber curvature Radius no less than 30mm	＞35mm
		Electric Connecting Set	Electnic connecting or shut off section in the box,ground lead-out section on the externl shell.	Meets the requirements
2	Seal performance	Charged with air which pressure is 60KPa±5KPa+65℃、20℃-40℃，2h10cycles,Allow air pressure change 5KPa,immersed in the water for 15min,no air bubbl escape		No air bubble escape,air pressure change is 4KPs	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
3	Insulated Resistance	After soaked into the water which is 1.5m deep for 24h,Insulated resistance≥2×10⁴MΩ	Between two metal sections	1×10⁶MΩ	Qualification
3	Insulated Resistance		Betwwen metal section and ground	1×10⁶MΩ	Qualification
4	Voltage Resisting Strength	After soaked into the water which is 1.5m deep for 24h,DC 15KV holding 1min,No breakage,no electric arc	Between two metal sections	No breakage No electric arc	Qualification
4	Voltage Resisting Strength		Betwwen metal section and ground	No breakage No electric arc	Qualification
5	Seal performance	Charged with air which pressure is 100KPa±5KPaimmersed in the water for 15min,no air bubble escape;After remove for 24hr,air pressure keeps unchanged		No air bubble escape,air press keeps unchanged	Qualification
6	Re-Seal performance	Repeat Seal performance 3 times,no air bubble escape;After remove for 24hr,air pressure keeps unchanged		No air bubble escape,air press keeps unchanged	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
7	Axis Tensile	For 800N axis strength Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged		Air press keeps unchanged	Qualification
8	Crush	For 2000N/100mm,crush force,Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged		Air press keeps unchanged	Qualification
9	Impact	16N·m,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification
10	Bending	150N,±45°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification
11	Torsion	50N,±90°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification

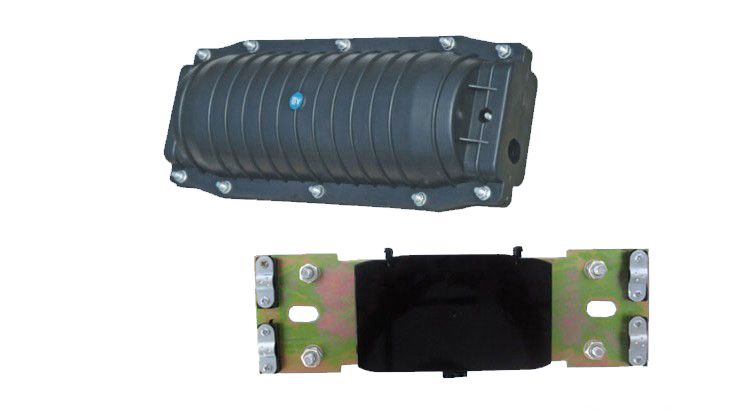

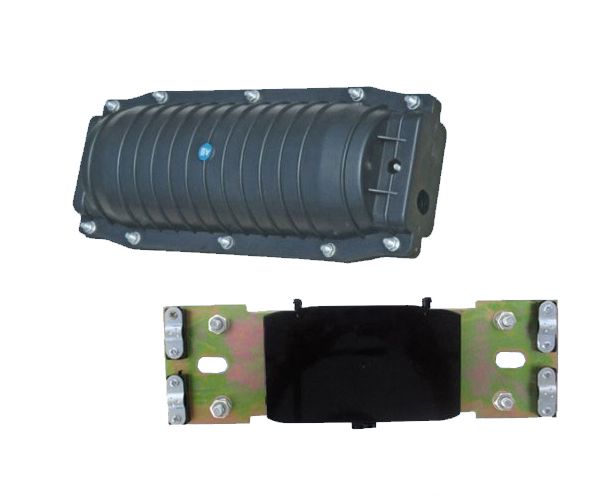

model	Size(mm)	Core capacity	Cable Port(max)	Max diameter Of cable(mm)	Splice Tray model	Core capacity Tray	Weight (kg)
CSC-1210	432 ×205	120	6	φ19	B	12-24	2.3

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
1	Appearance and configuration	Appearance	Shape integnity, No defect,color uniform	Meets the requirements	Qualification
		Optical Fibers Storage Set	Residual fiber length no less than 1.6m	＞1.6m
		Optical Fibers Storage Set	Residual fiber curvature Radius no less than 30mm	＞35mm
		Electric Connecting Set	Electnic connecting or shut off section in the box,ground lead-out section on the externl shell.	Meets the requirements</sp
