Fiber Distribution Frame

model	Size(mm)	Core capacity	Cable Port(max)	Max diameter Of cable(mm)	Splice Tray model	Core capacity Tray	Weight (kg)

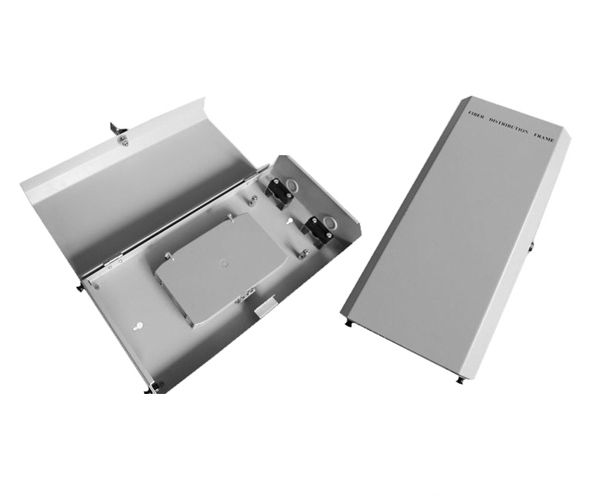

NTM splicing&distribution module	335×200 ×25	12				12	0.4

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
1	Appearance and configuration	Appearance	Shape integnity, No defect,No burr,No bubble,N crack,No impurity,No hole,color uniform,to close and open is easy	Meets the requirements	Qualification
		Electric Connecting Set	Electnic connecting or shut off section in the box,ground lead-out section on the externl shell.	Meets the requirements
		Optical Fibers Storage Set	Residual fiber length no less than 1.6m	＞1.6m
			Residual fiber curvature Radius no less than 37.5mm	＞40.5mm
2	Function	YD/T 925-1997		Meets the requirements	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
3	Axis Tensile	Between calbe and case≥500N		＞500N	Qualification
		Between cable connector and case≥5N		＞5N
4	Crush	≥200N		Meets the requirements	Qualification
5	Torsion	±90°，3cycles,1min		Meets the requirements	Qualification
6	High Temperature Test	(55±2)℃，2h,after test at room temperature condition for 2h,color uniform,no loss increase		color uniform,no loss increase	Qualification
7	Low Temperature Test	(-25±3)℃，2h,after test at room temperature condition for 2h,color uniform,no loss increase		color uniform,no loss increase	Qualification
8	Damp Heat Test	(30±2)℃ （85±3）%，2h,after test at room temperature condition for 2h,color uniform,no loss increase		color uniform,no loss increase	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
9	Insulated Resistance	Insulated resistance≥2×10⁴MΩ	Between two metal sections	1×10⁶MΩ	Qualification
			Betwwen metal section and ground	1×10⁶MΩ
			Between two cable	1×10⁶MΩ
10	Voltage Resisting Strength	DC 15KV holding 1min,No breakage,no electric arc	Between two metal sections	No breakage No electric arc	Qualification
			Betwwen metal section and ground	No breakage No electric arc
			Between two cable	No breakage No electric arc

model	Size(mm)	Core capacity	Cable Port(max)	Max diameter Of cable(mm)	Splice Tray model	Core capacity Tray	Weight (kg)

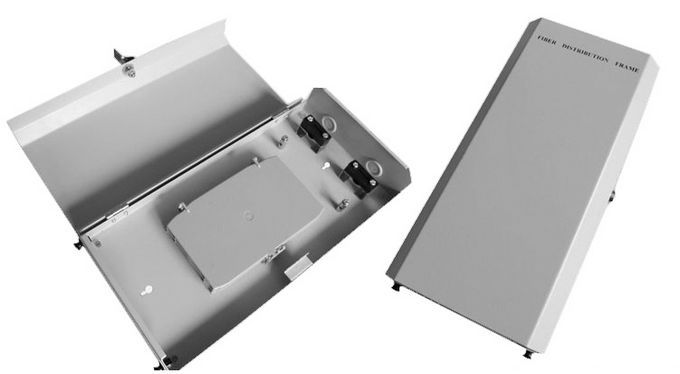

ODF-2055B	48522044	12-96	2-4	φ22	B	12-24	2.2

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
1	Appearance and configuration	Appearance	Shape integnity, No defect,No burr,No bubble,N crack,No impurity,No hole,color uniform,to close and open is easy	Meets the requirements	Qualification
		Electric Connecting Set	Electnic connecting or shut off section in the box,ground lead-out section on the externl shell.	Meets the requirements
		Optical Fibers Storage Set	Residual fiber length no less than 1.6m	＞1.6m
			Residual fiber curvature Radius no less than 37.5mm	＞40.5mm
2	Function	YD/T 925-1997		Meets the requirements	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
3	Axis Tensile	Between calbe and case≥500N		＞500N	Qualification
		Between cable connector and case≥5N		＞5N
4	Crush	≥200N		Meets the requirements	Qualification
5	Torsion	±90°，3cycles,1min		Meets the requirements	Qualification
6	High Temperature Test	(55±2)℃，2h,after test at room temperature condition for 2h,color uniform,no loss increase		color uniform,no loss increase	Qualification
7	Low Temperature Test	(-25±3)℃，2h,after test at room temperature condition for 2h,color uniform,no loss increase		color uniform,no loss increase	Qualification
8	Damp Heat Test	(30±2)℃ （85±3）%，2h,after test at room temperature condition for 2h,color uniform,no loss increase		color uniform,no loss increase	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
9	Insulated Resistance	Insulated resistance≥2×10⁴MΩ	Between two metal sections	1×10⁶MΩ	Qualification
			Betwwen metal section and ground	1×10⁶MΩ
			Between two cable	1×10⁶MΩ
10	Voltage Resisting Strength	DC 15KV holding 1min,No breakage,no electric arc	Between two metal sections	No breakage No electric arc	Qualification
			Betwwen metal section and ground	No breakage No electric arc
			Between two cable	No breakage No electric arc

model	Size(mm)	Core capacity	Cable Port(max)	Max diameter Of cable(mm)	Splice Tray model	Core capacity Tray	Weight (kg)

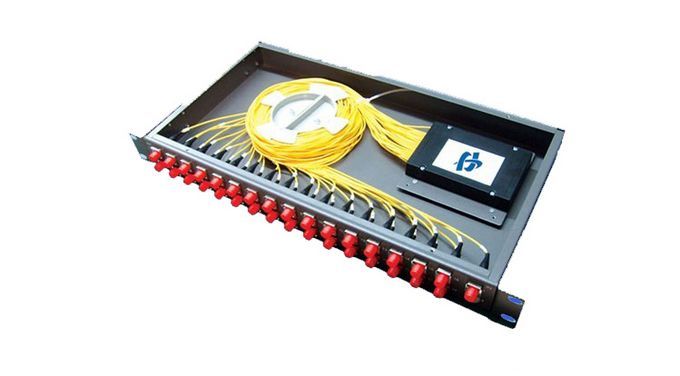

ODF-2022	485×300 ×52	12-96	2-4	φ22	E	12-24	3.4

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
1	Appearance and configuration	Appearance	Shape integnity, No defect,No burr,No bubble,N crack,No impurity,No hole,color uniform,to close and open is easy	Meets the requirements	Qualification
		Electric Connecting Set	Electnic connecting or shut off section in the box,ground lead-out section on the externl shell.	Meets the requirements
		Optical Fibers Storage Set	Residual fiber length no less than 1.6m	＞1.6m
			Residual fiber curvature Radius no less than 37.5mm	＞40.5mm
2	Function	YD/T 925-1997		Meets the requirements	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
3	Axis Tensile	Between calbe and case≥500N		＞500N	Qualification
		Between cable connector and case≥5N		＞5N
4	Crush	≥200N		Meets the requirements	Qualification
5	Torsion	±90°，3cycles,1min		Meets the requirements	Qualification
6	High Temperature Test	(55±2)℃，2h,after test at room temperature condition for 2h,color uniform,no loss increase		color uniform,no loss increase	Qualification
7	Low Temperature Test	(-25±3)℃，2h,after test at room temperature condition for 2h,color uniform,no loss increase		color uniform,no loss increase	Qualification
8	Damp Heat Test	(30±2)℃ （85±3）%，2h,after test at room temperature condition for 2h,color uniform,no loss increase		color uniform,no loss increase	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
9	Insulated Resistance	Insulated resistance≥2×10⁴MΩ	Between two metal sections	1×10⁶MΩ	Qualification
			Betwwen metal section and ground	1×10⁶MΩ
			Between two cable	1×10⁶MΩ
10	Voltage Resisting Strength	DC 15KV holding 1min,No breakage,no electric arc	Between two metal sections	No breakage No electric arc	Qualification
			Betwwen metal section and ground	No breakage No electric arc
			Between two cable	No breakage No electric arc

model	Size(mm)	Core capacity	Cable Port(max)	Max diameter Of cable(mm)	Splice Tray model	Core capacity Tray	Weight (kg)
ODF-2011B	32016056	16	2	φ22	B	12-24	1.3

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
1	Appearance and configuration	Appearance	Shape integnity, No defect,color uniform	Meets the requirements	Qualification
		Optical Fibers Storage Set	Residual fiber length no less than 1.6m	＞1.6m
		Optical Fibers Storage Set	Residual fiber curvature Radius no less than 30mm	＞35mm
		Electric Connecting Set	Electnic connecting or shut off section in the box,ground lead-out section on the externl shell.	Meets the requirements
2	Seal performance	Charged with air which pressure is 60KPa±5KPa+65℃、20℃-40℃，2h10cycles,Allow air pressure change 5KPa,immersed in the water for 15min,no air bubbl escape		No air bubble escape,air pressure change is 4KPs	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
3	Insulated Resistance	After soaked into the water which is 1.5m deep for 24h,Insulated resistance≥2×10⁴MΩ	Between two metal sections	1×10⁶MΩ	Qualification
3	Insulated Resistance		Betwwen metal section and ground	1×10⁶MΩ	Qualification
4	Voltage Resisting Strength	After soaked into the water which is 1.5m deep for 24h,DC 15KV holding 1min,No breakage,no electric arc	Between two metal sections	No breakage No electric arc	Qualification
4	Voltage Resisting Strength		Betwwen metal section and ground	No breakage No electric arc	Qualification
5	Seal performance	Charged with air which pressure is 100KPa±5KPaimmersed in the water for 15min,no air bubble escape;After remove for 24hr,air pressure keeps unchanged		No air bubble escape,air press keeps unchanged	Qualification
6	Re-Seal performance	Repeat Seal performance 3 times,no air bubble escape;After remove for 24hr,air pressure keeps unchanged		No air bubble escape,air press keeps unchanged	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
7	Axis Tensile	For 800N axis strength Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged		Air press keeps unchanged	Qualification
8	Crush	For 2000N/100mm,crush force,Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged		Air press keeps unchanged	Qualification
9	Impact	16N·m,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification
10	Bending	150N,±45°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification
11	Torsion	50N,±90°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged		Air press keeps unchanged	Qualification

model	Size(mm)	Core capacity	Cable Port(max)	Max diameter Of cable(mm)	Splice Tray model	Core capacity Tray	Weight (kg)

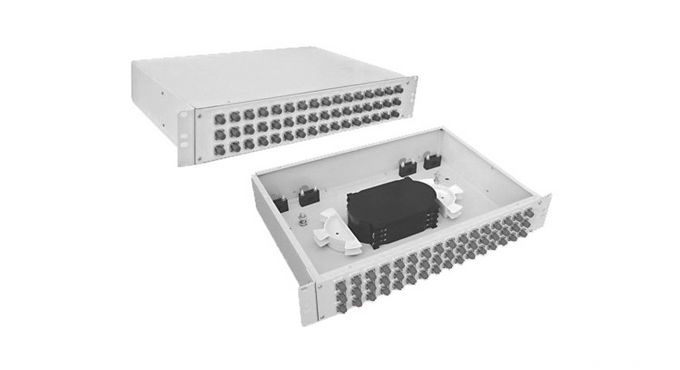

ODF-2044D	485×305 ×46	12-96	2-4	φ22	E	12-24	3.7

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
1	Appearance and configuration	Appearance	Shape integnity, No defect,No burr,No bubble,N crack,No impurity,No hole,color uniform,to close and open is easy	Meets the requirements	Qualification
		Electric Connecting Set	Electnic connecting or shut off section in the box,ground lead-out section on the externl shell.	Meets the requirements
		Optical Fibers Storage Set	Residual fiber length no less than 1.6m	＞1.6m
			Residual fiber curvature Radius no less than 37.5mm	＞40.5mm
2	Function	YD/T 925-1997		Meets the requirements	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
3	Axis Tensile	Between calbe and case≥500N		＞500N	Qualification
		Between cable connector and case≥5N		＞5N
4	Crush	≥200N		Meets the requirements	Qualification
5	Torsion	±90°，3cycles,1min		Meets the requirements	Qualification
6	High Temperature Test	(55±2)℃，2h,after test at room temperature condition for 2h,color uniform,no loss increase		color uniform,no loss increase	Qualification
7	Low Temperature Test	(-25±3)℃，2h,after test at room temperature condition for 2h,color uniform,no loss increase		color uniform,no loss increase	Qualification
8	Damp Heat Test	(30±2)℃ （85±3）%，2h,after test at room temperature condition for 2h,color uniform,no loss increase		color uniform,no loss increase	Qualification

Sequence Number	Inspection Item	Requirement		Inspection Results	Conclusion
9	Insulated Resistance	Insulated resistance≥2×10⁴MΩ	Between two metal sections	1×10⁶MΩ	Qualification
			Betwwen metal section and ground	1×10⁶MΩ
			Between two cable	1×10⁶MΩ
10	Voltage Resisting Strength	DC 15KV holding 1min,No breakage,no electric arc	Between two metal sections	No breakage No electric arc	Qualification
			Betwwen metal section and ground	No breakage No electric arc
			Between two cable	No breakage No electric arc
