Bare PLC Splitter
Our's PLC splitter family(1xN,2xN) features either ribbon or individual fiber output, with specifications that are tailored for different application and markets. All splitters provide guaranteed optical performance and high reliability that surpasses Telcordia requirements.
|
Type |
1×2 |
1×3 |
1×4 |
1×6 |
1×8 |
1×12 |
1×16 |
1×24 |
1×32 |
1×64 |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
|
L |
40 |
40 |
40 |
40 |
40 |
40 |
40 |
50 |
50 |
60 |
50 |
50 |
50 |
60 |
60 |
|
W |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
7 |
7 |
12 |
4 |
4 |
4 |
7 |
7 |
|
H |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
PLC Splitter
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management.
KST provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network deployment.
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
|
|
Operating Wavelength（nm） |
1260～1650 |
|||||||||||
|
Insertion Loss（dB） |
Typlcal |
3.6 |
7.0 |
10.0 |
13.3 |
16.3 |
20.0 |
3.7 |
7.0 |
10.8 |
13.6 |
16.8 |
|
Max（P/S） |
3.8 /4.0 |
7.2 /7.4 |
10.5 /10.7 |
13.5 /13.7 |
16.5 /16.9 |
20.5 /21.0 |
3.9 /4.2 |
7.5 /7.8 |
11.2 /11.5 |
14.2 /14.5 |
17A /17.7 |
|
|
Loss Unifocmity（dB） |
Typlcal |
0.3 |
0.4 |
0.5 |
0.6 |
0.8 |
1.2 |
0.5 |
1.0 |
1.0 |
1.2 |
1.5 |
|
Max |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
0.6 |
1.2 |
1.5 |
1.8 |
2.0 |
|
|
Retum Loss（dB）（P/S） |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
|
|
PDL（dB） |
Typlcal |
0.1 |
0.1 |
0.15 |
0.15 |
0.15 |
0.2 |
0.1 |
0.1 |
0.2 |
0.3 |
0.3 |
|
Max |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
0.2 |
0.2 |
0.4 |
0.4 |
0.4 |
|
|
Directivity（dB） |
Min |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dpendent Loss（dB） |
Typlcal |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
|
Max |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.4 |
0.4 |
0.5 |
0.6 |
0.8 |
|
|
Temperature Stability(-40～85℃)（dB） |
Typlcal |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.4 |
0.4 |
|
Max |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
|
|
Operating Temperature(℃) |
-40～85 |
|||||||||||
|
Storage Temperature(℃) |
-40～85 |
|||||||||||
|
Packaging size(mm) |
Bare Splitter |
40×4×4 |
50×7×4 |
60×12×4 |
50×4×4 |
50×7×4 |
||||||
|
Blockless Splitter |
60×7×4 |
60×12×5 |
80×20×6 |
|
60×7×4 |
80×12×5 |
100×20×6 |
|||||

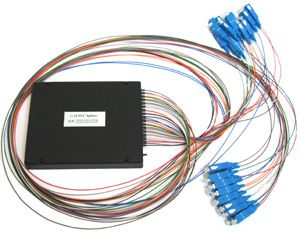

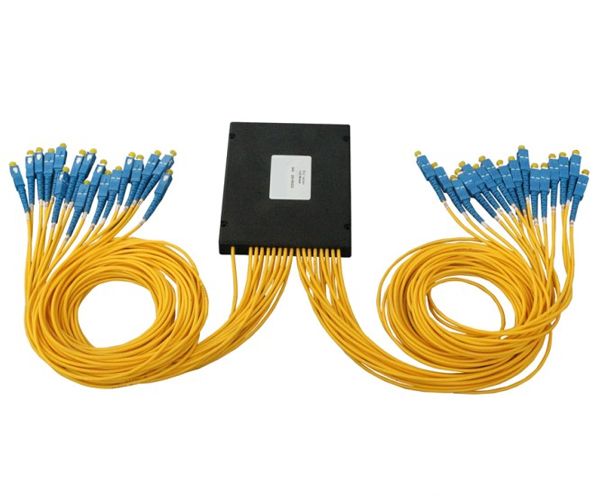

PLC Splitter Module
For real-world applications, KST provides a variety of cassette or box type splitter products that are connectorized and/or pluggable. They are available in the form of either module cassette, rack-mount or wall-mount box with fiber diameter up to 3 mm. These rugged products and installation and are suitable for both indoor and outdoor applications.
|
|
1×2 |
1×3 |
1×4 |
1×6 |
1×8 |
1×12 |
1×16 |
1×24 |
1×32 |
1×64 |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
|
Type |
O |
L |
S |
O |
L |
S |
|||||||||
|
L |
100 |
120 |
140 |
100 |
120 |
140 |
|||||||||
|
W |
80 |
80 |
114 |
80 |
80 |
114 |
|||||||||
|
H |
9 |
18 |
18 |
9 |
18 |
18 |
|||||||||
|
Pcsticning hole（L×W） |
70×74 |
80×74 |
100×106 |
70×74 |
80×74 |
100×106 |
|||||||||
