Technical Parameters:
|
Cable Count |

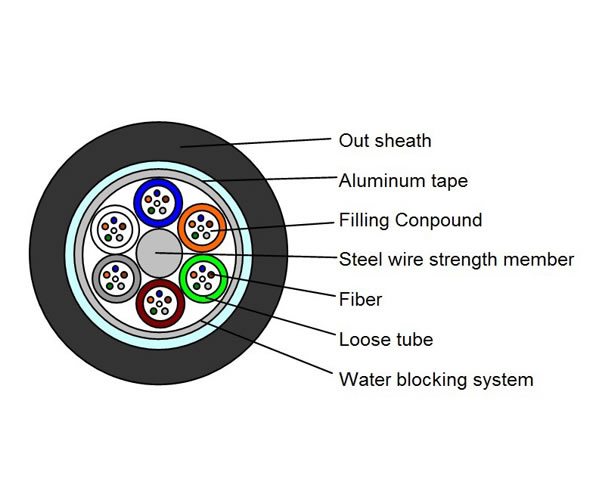

Out sheath |
Weight |
Minimum allowable Tensile Strength |
minimum allowable Crush Load |
Minimum Bending Radius |
Storage |
|||
|
（MM) |
（KG) |
short term |
long term |
short term |
long term |
short term |
long term |
（℃） |
|
|
24 |
10.5 |
90.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
36 |
10.5 |
90.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
42 |
10.5 |
90.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
48 |
10.5 |
90.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
60 |
10.5 |
90.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
72 |
13.5 |
160.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
| 96 | 13.5 | 160.0 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 144 | 15.5 | 180.0 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
|
Optical Characteristics: |
||||
|
Fiber Sort |
Multimode |
G.651 |
A1a:50/125 |
Graded-index fiber |
|
A1b:62.5/125 |
||||
|
Singlemode |
G.652(A、B、C） |
B1.1:Conventional fiber |
||
|
G.652D |
B2: Zero dispersion shifted |
|||
|
G.655 |
B1.2 :Cut-off wavelength shifted |
|||
|
G.657（A1、A2 、B3） |
B4: Main technical data for positive |
|||
