GYXTC8S

Detailed Description

Product Name：GYXTC8S

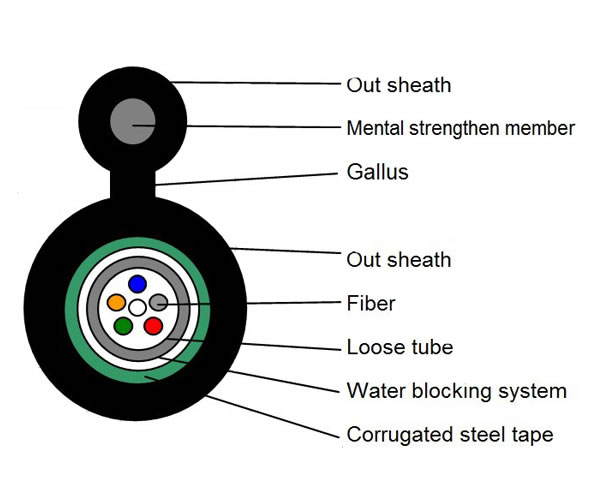

Model：Figure 8 self-supporting cable

Number：O013

☆.Adopted to Outdoor distribution. ☆.Suitable for aerial duct and buried method.
☆.Long distance and local area network communication.

☆.Stainless steel or gaivanized steel self-supporting.
☆.Excellet mechanical and environmental performance.

Technical Parameters:

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load （N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	（MM)	（KG)	short term	long term	short term	long term	short term	long term	（℃）
2	3.8×5.5	52.00	1000	200	1000	200	20D	10D	-40+60
4	3.8×5.5	52.00	1000	200	1000	200	20D	10D	-40+60
6	3.8×5.5	52.00	1000	200	1000	200	20D	10D	-40+60
8	3.8×5.5	52.00	1000	200	1000	200	20D	10D	-40+60
12	3.8×5.5	52.00	1000	200	1000	200	20D	10D	-40+60

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A、B、C）		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657（A1、A2 、B3）		B4: Main technical data for positive dispersion shifted single-mode fiber
