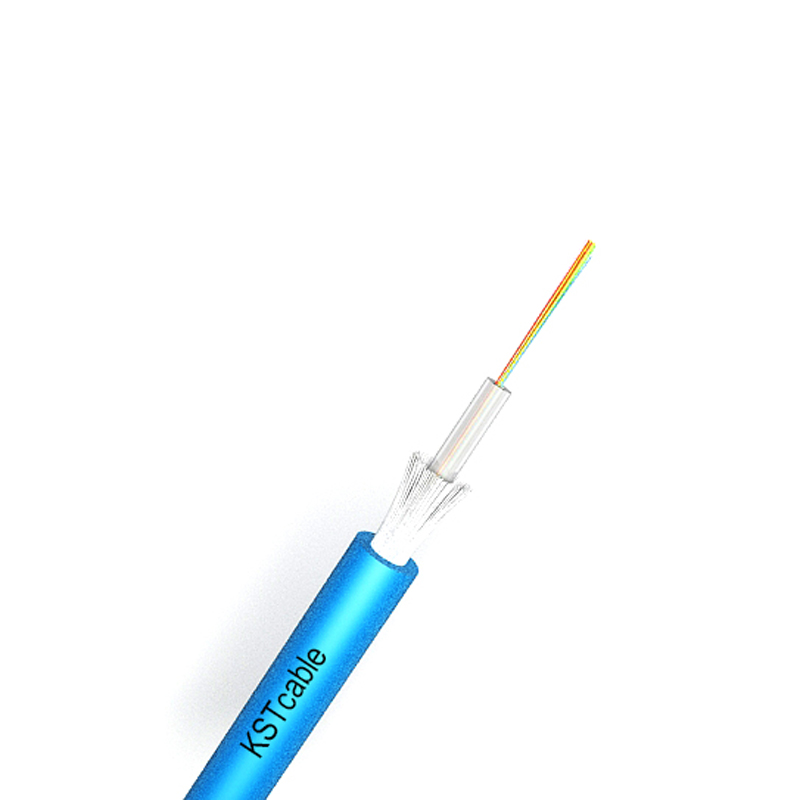

GYFXTZY 2-12 Core Glass Yarn Reinforecd Central Loose Tube Fiber Optic Cable

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking glass yarn. Then the cable is completed with a LSZH sheath.

  • Product Model:GYFXTZY
INQUIRY
· Adopted to indoor and outdoor distribution.
· With excellent waterproofing performance.
· Suitable for communication equipment served.
· Hight strength water blocking glass yarn member.
· Filler protects tube fiber.

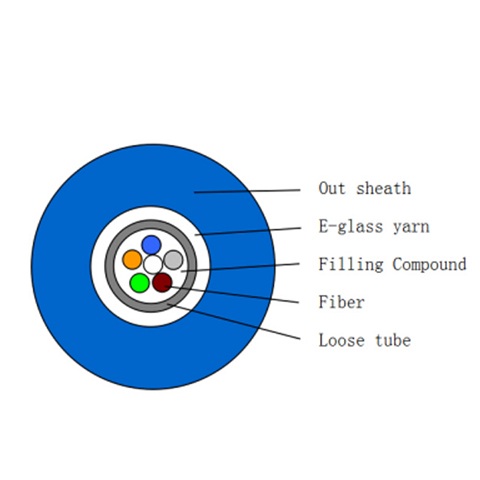

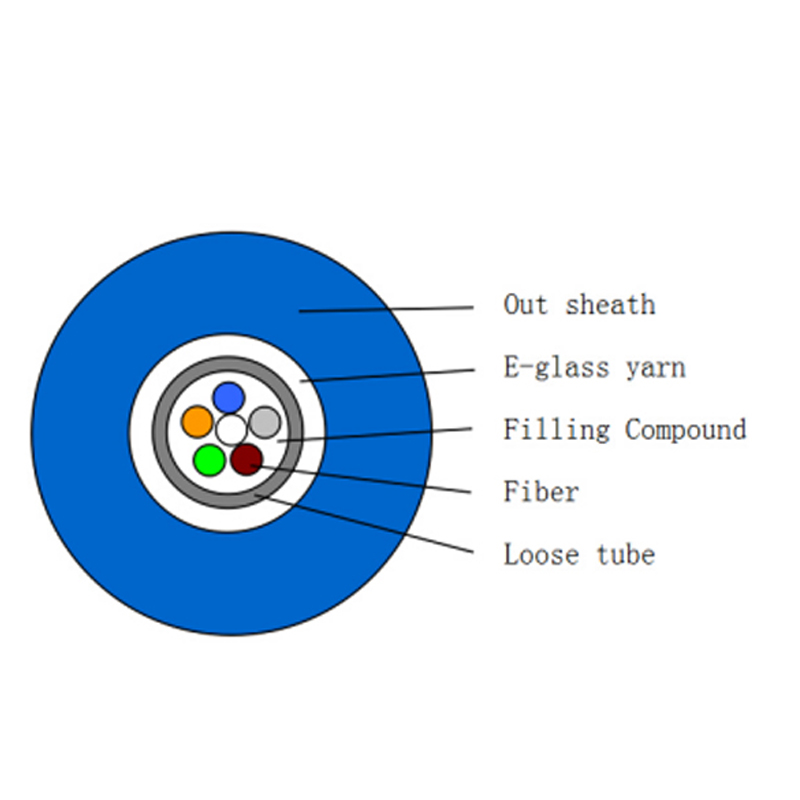

Structure details

Fiber count 2F-12F
Loose tube Material PBT Color White
Diameter 2.8±0.05mm Thickness 0.4±0.05mm
Yarn Material Glass yarn Qty 5 strands
Rip cord Qty (1000D*2)*1 Color White
Out sheath Material LSZH Color Black
Diameter 6.0±0.3mm Thickness 1.5±0.2mm

Mechanical and environment performance

Tensile strength Short term 500N
Long term 200N
Crush load Max. 1000N/100mm
Bending radius Dynamic 20D
Static 10D
 Storage temperature -40℃~+70℃
Operating temperature -20℃~+70℃

Fiber characteristics

Fiber style Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.24 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7

Package

Packing material: Wooden drum.
Packing length: 2km per drum or customization.
