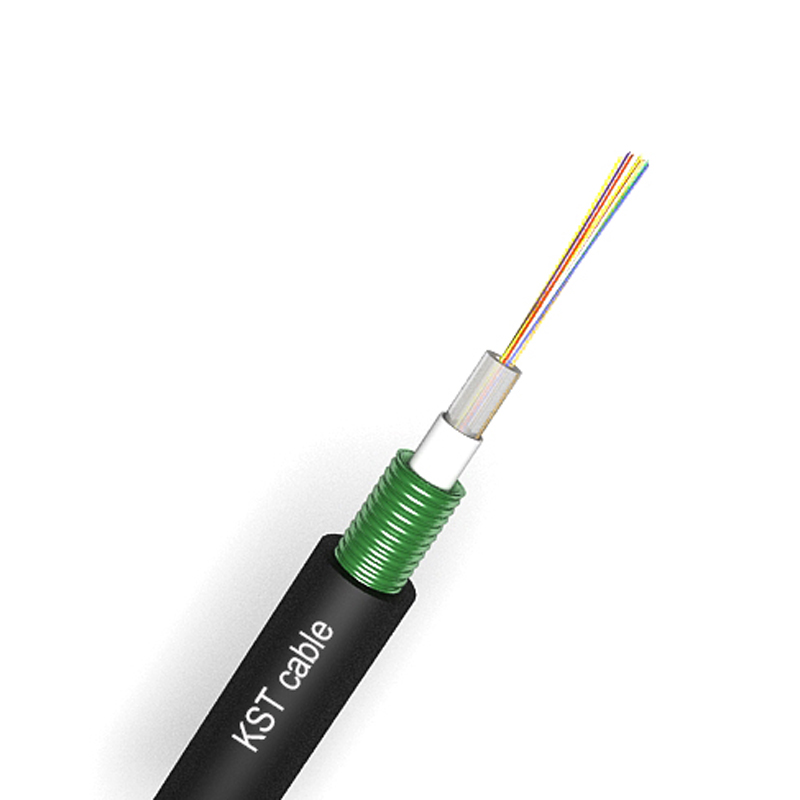

GYXTS Central Loose Tube Armored Fiber Optic Cable
The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking glass yarn. A corrugated steel tape is applied over the yarn. Two rip cords are located between the glass yan and the steel tape. Then the cable is completed with a high density polyethylene (HDPE) sheath.
· Suitable for aerial, pipeline laying method;
· Long distance and local area network communication.
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PE sheath protects cable from ultraviolet radiation
· Loose tube filling compound and 100% cable core filling

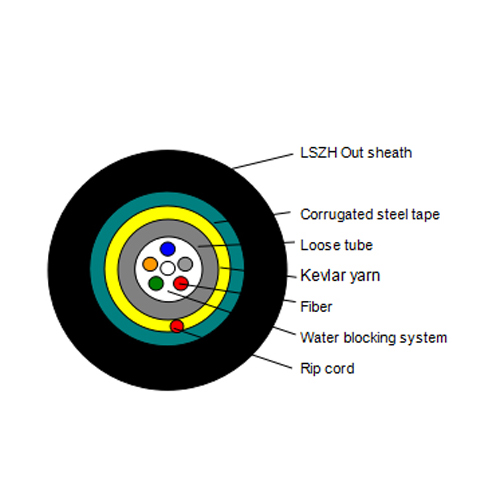

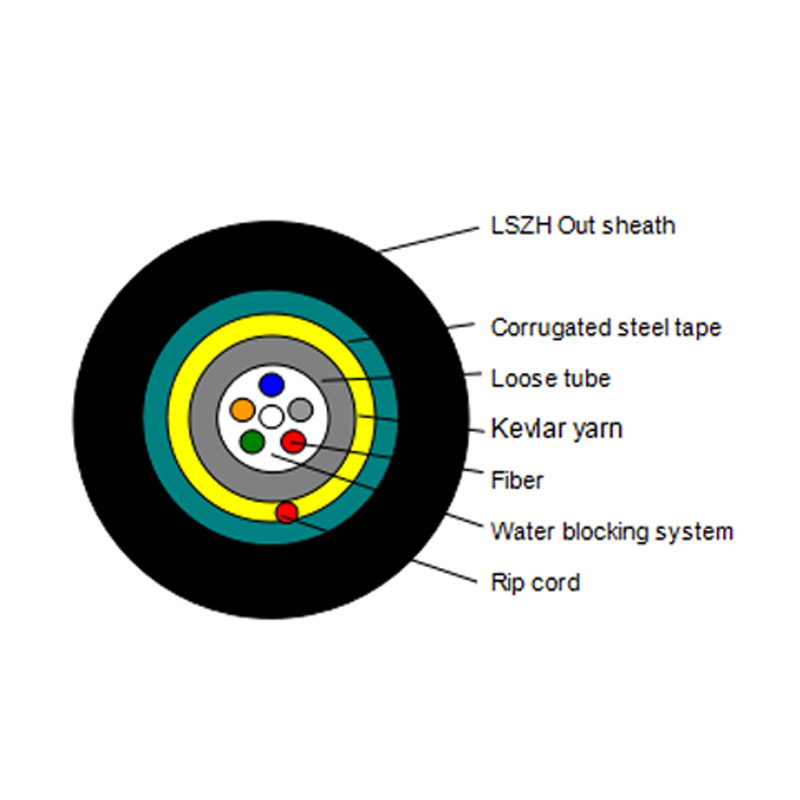

Structure details
Fiber count
6F-24F
Loose tube
Material
PBT
Color
white
Diameter
2.9±0.05mm (6-12F)
Thickness
0.4±0.05mm (6-12F)
3.5±0.05mm (24F)
0.5±0.05mm (24F)
Yarn
Material
water blocking glass yarn
Qty
20 strands
Rip cords
Qty
(1110*2)*2
Color
White
Armor
Material
Corrugated steel tape
Diameter
0.21*20mm
Out sheath
Material
HDPE
Color
Black
Diameter
7.4±0.2mm (6-12F)
Thickness
1.2-1.3mm (6-12F)
8.5±0.3mm (24F)
1.3±0.1mm (24F)
Net weight
48±5kg/km
Mechanical and environment performance
Tensile strength
Max.
2000N
Crush load
Max.
2000N/100mm
Bending radius
Dynamic
20D
Static
10D
Storage temperature
-50℃～+70℃
Operating temperature
-40℃～+70℃
Fiber characteristics
Fiber style
Unit
SM G652D
MM 50/125
MM 62.5/125
Condition
mm
1310/1550
850/1300
850/1300
Attenuation
dB/km
≤0.36/0.24
≤3.0/1.5
≤3.0/1.5
Cladding diameter
um
125±1
125±1
125±1
Cladding non-circularity
%
≤1.0
≤1.0
≤1.0
Coating diameter
um
242±7
242±7
242±7
Package
Packing material: Wooden drum.
Packing length: 2km per drum or customization.
