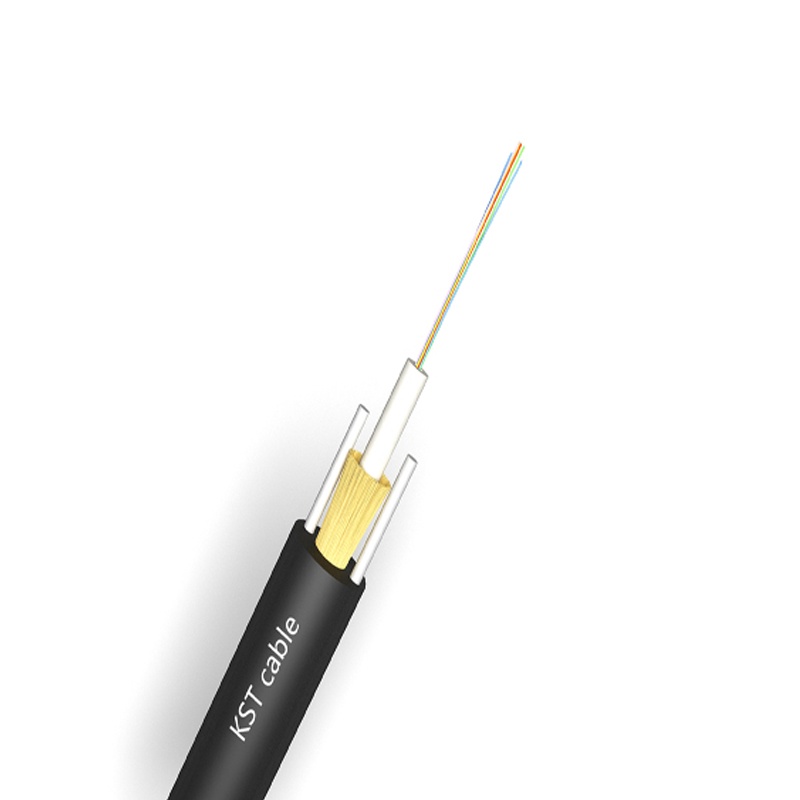

GYFXTY 12F G652D Non-metal Central Loose Tube Outdoor Cable

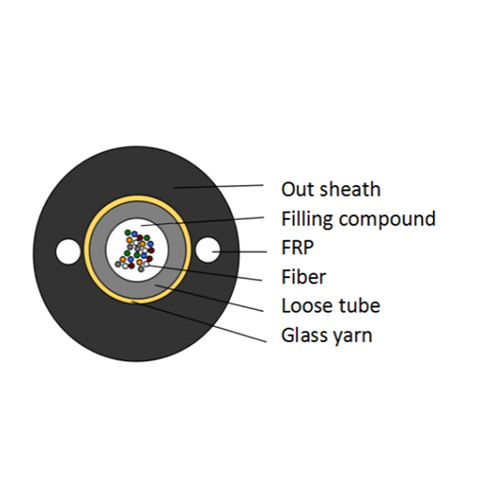

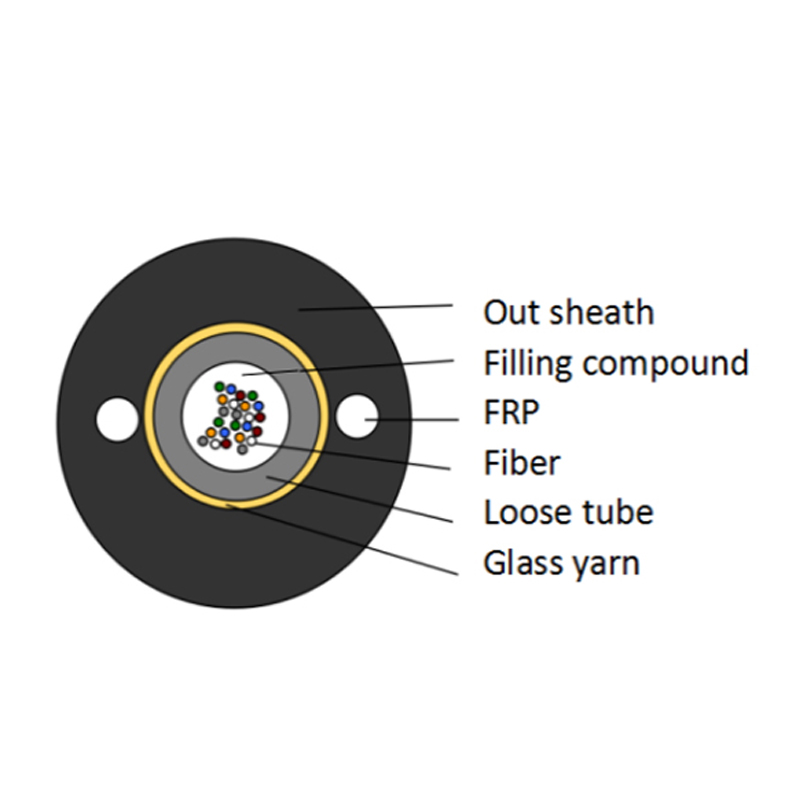

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking yarn. Two parallel FRP are placed at the two sides. The cable is completed with a high density polyethylene (HDPE) sheath.
· Suitable for communication equipment serve.
· High strength loose tube that is hydrolysis resistant.
· Special tube filling compound ensure a critical protection of fiber.
· FRP ensure tensile strength.
· Small diameter, light weight and friendly installation.
Structure details
Fiber count
12F
SM fiber
Fiber type
G652D
Concentricity error
≤0.5um
MFD
8.6～9.8um
Cladding non-circularity
≤0.7%
Cladding diameter
125±1um
Fiber color
Standard spectrum
Loose tube
Material
PBT
Color
Natural
Diameter
1.8±0.1mm
Thickness
0.3±0.05mm
Tube filling
Material
Filling compound
Strength member
Material
FRP
Diameter
0.5mm*2
Yarn
Material
Glass yarn
Qty
600-F*8
Out sheath
Material
HDPE
Color
Black
Diameter
5.3±0.3mm
Thickness
1.3±0.1mm
Neight weight (km/kg)
23±5kg
Mechanical and environment performance
Tensile strength
Long term（N）
400N
Short term（N）
1000N
Crush load
Long term
300N/100mm
Short term
1000N/100mm
Bending radius
Dynamic
20D
Static
10D
Impact strength
10Nm
Installation Temperature
-30℃～+70℃
Fiber Performance
Fiber attenuation
1310um
≤0.36dB/km
1550um
≤0.22dB/km
Package
Packing material: Wooden drum.
Packing length: 2km per drum.
Packing dimension: 600*600*430mm.
