24 Core SM G652D Optical Power Composite Cable

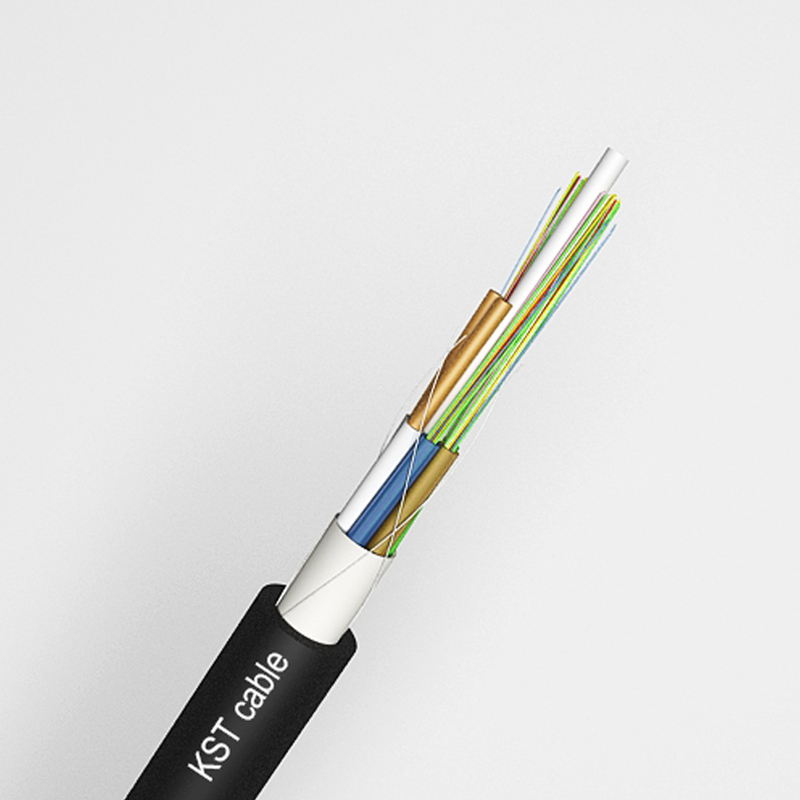

The fibers are positioned in loose tubes, which are made of high modulus plastics and filled with water-blocking materials. Loose tube and required insulated copper wires are stranded around the non-metallic cental strength member into a compact and circular cable core. The water blocking tape is applied to prevent the ingress of water, then the cable is completed with a PE sheath.

  • Product Model：
INQUIRY
ApplicationCharacteristicsTechnical Parameters
·Adopted to outdoor distribution.
·Adopted to trunk power transmission system.
·Security monitoring project.
· The composite cable provides the equipment electricity and signal transmission, and improves central monitoring and maintenance for equipment power.
· To reduce the coordination and maintenance of power supply.
· Excellent ultraviolet prevention with PE sheath.

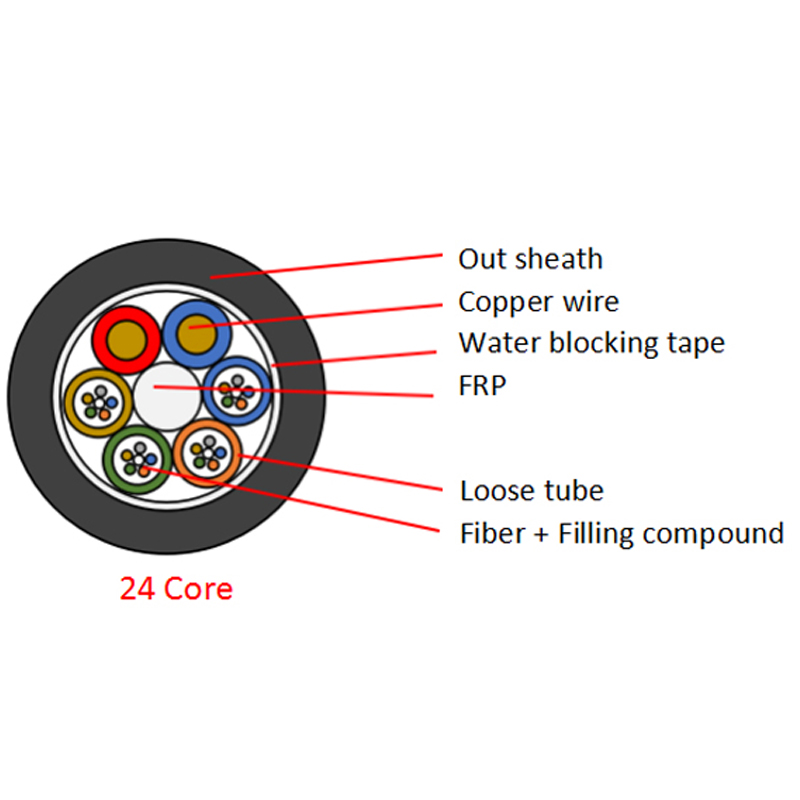

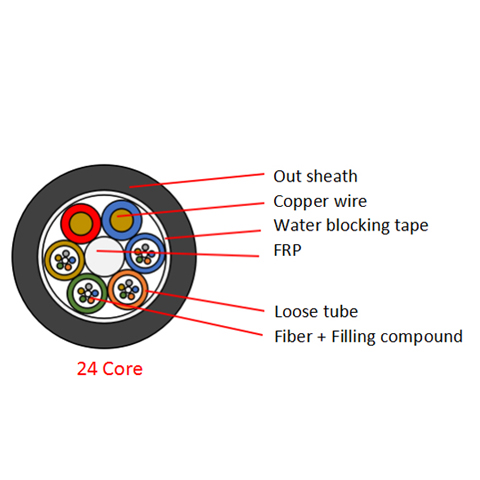

Structure details

SM fiber G652D
Fiber type G652D Concentricity error ≤1um
MFD 8.7～9.7um Cladding non-circularity ≤2%
Cladding diameter 125±2um Fiber color standard spectrum
Loose tube Material PBT Color Standard spectrum
Qty 4 (24F) Fiber pre tube 6 (24F)
6 (72F) 12 (72F)
Copper wire Qty 0.6mm2*2
Central strength member Material FRP Diameter 2.0mm
Water blcoking system Material Water blocking tape
Out sheath Material PE Color Black
Diameter 9.2±0.2mm (24F) Thickness 1.6±0.1mm
10.8±0.2mm (72F)

Mechanical and environment performance

Tensile strength Long term（N） 600N
Short term（N） 1500N
Crush load Long term 300N/100mm
Short term 1000N/100mm
Bending radius Dynamic 20D
Static 10D
Operating Temperature -20℃～+70℃

Fiber Performance

Fiber attenuation 1310um ≤0.36dB/km
1550um ≤0.24dB/km

Package

Packing material: Wooden drum.

Packing length: 2km per drum.
