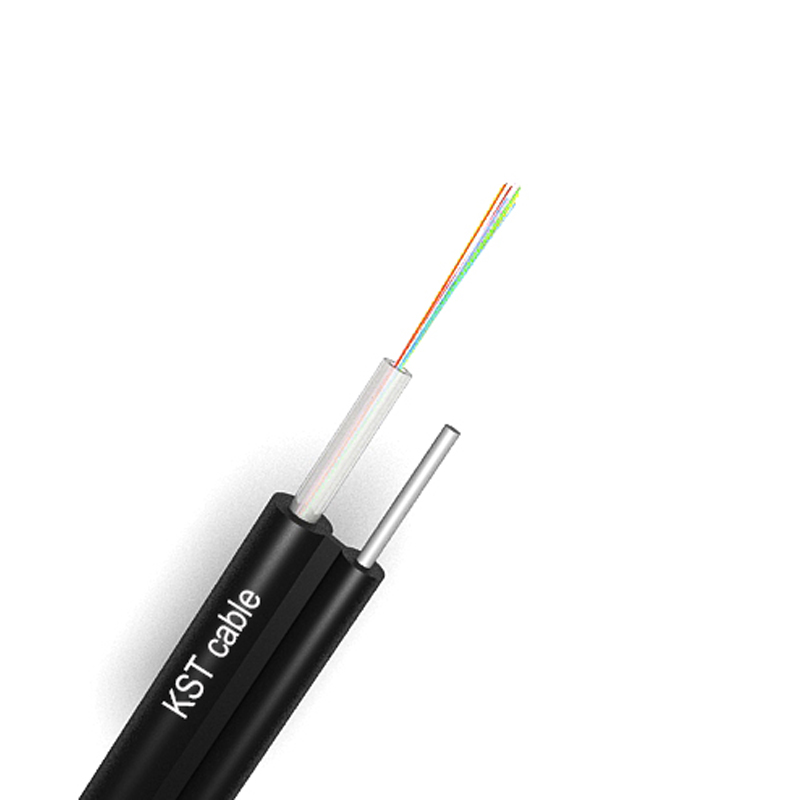

Unitube Aerial Fiber Optic Cable GYXTC8Y UV Stable

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. This part of cable companied with the wires as the supporting part are completed with a PE sheath to be figure 8 structure.

  • Product Model:GYXTC8Y
• Adopted to outdoor distribution.
• Suitable for aerial, pipeline laying method.
• Long distance and local area network communication.
• Proven loose tube design for good performance.
• Non-metal strength has an excellent anti-electromagnet ability.
• Excellent mechanical and environmental characteristics.
• Good flexibility and bending performance.
• Small outer diameter,light weigh easy to installation.

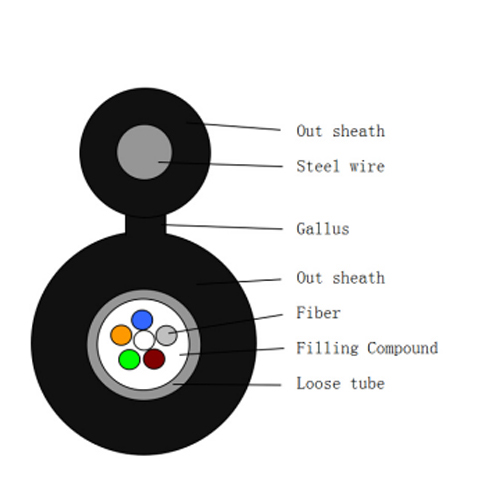

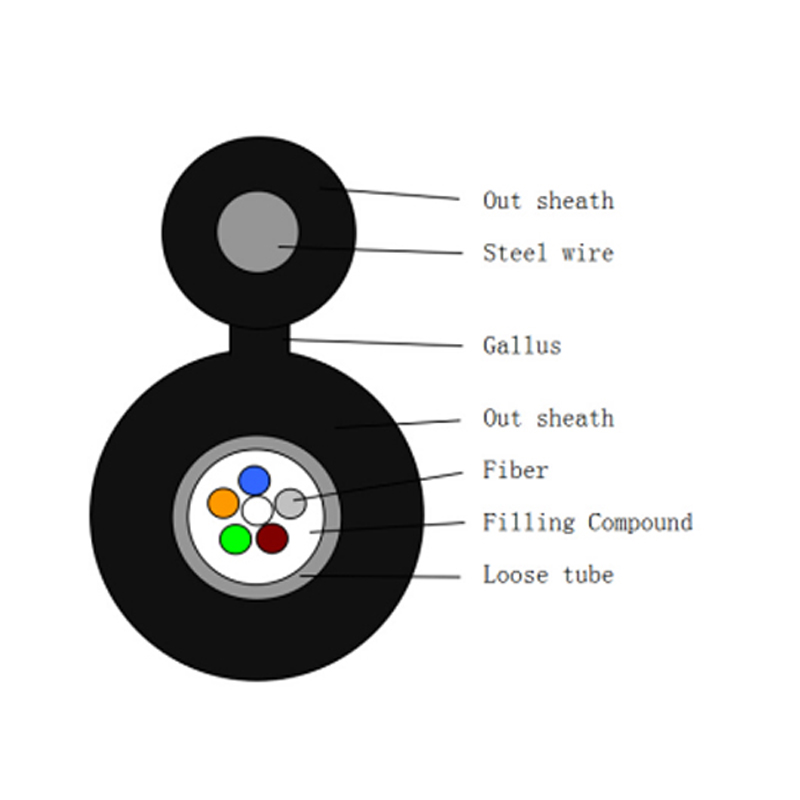

Cable Construction Details

Fiber count 2F-24F
Loose Tube Material PBT Diameter 2.8mm
Tube-filling Mateial Filling compound
Water blocking systme Material Water blocking tape / Filling gel
Mental strength member Mateial Steel wire Size 1.4mm
Gallus Mateial PE Size
Outer Sheath Material PE Color black
Diameter 3.8*6.5-12
Thickness 1.6±0.1mm

Cable mechanical and environment chararcteristics

Tensile strength Long term 600N
Short term 1500N
Crush load Long term 300N/100mm
Short term 1000N/100mm
Bending radius Dynamic 20D
Static 10D
Installation Temperature -10℃~+60℃
Storage Temperature -40℃~+70℃

Fiber characteristics

Fiber type Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.24 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7


Packing material: Wooden drum.
Packing length: 2km per drum or customization.
