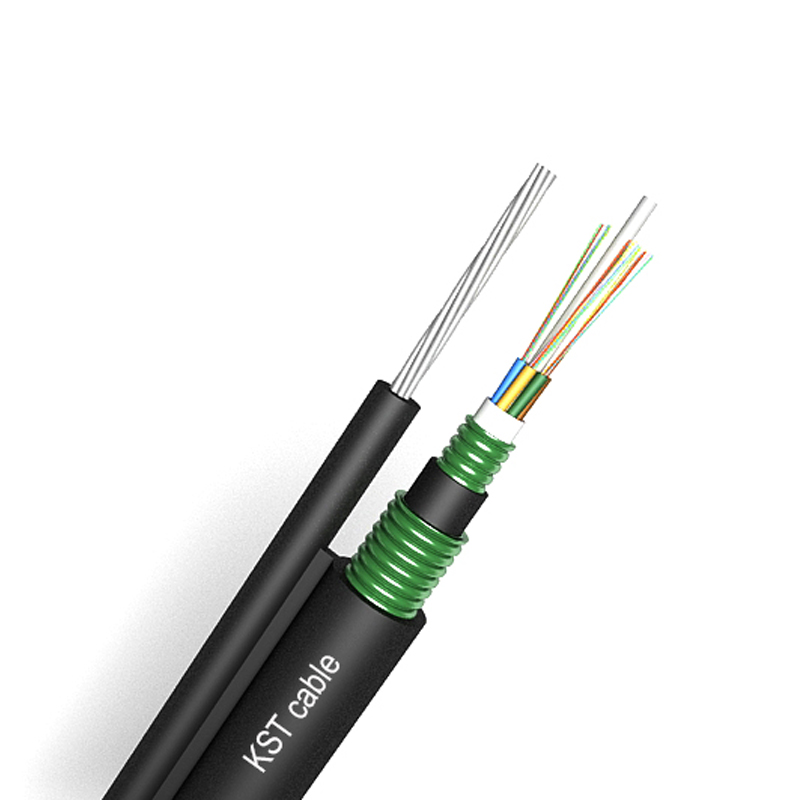

Figure 8 Water Blocking Armored Fiber Optic Cable GYTC8S53

The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A FRP locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After the corrugated steel tape is applied around the cable core, then it is wrapped with inner sheath.Then the PSP is around the inner sheath, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.

  • Product Model:GYTC8S53
1. Adopted to trunk power transmission system.
2. Access network and local network in high electromagnetic interfering places.
1. Good flexibility and bending performance.
2. Small outer diameter,light weigh easy to installation.
3. 100% cable core filling.

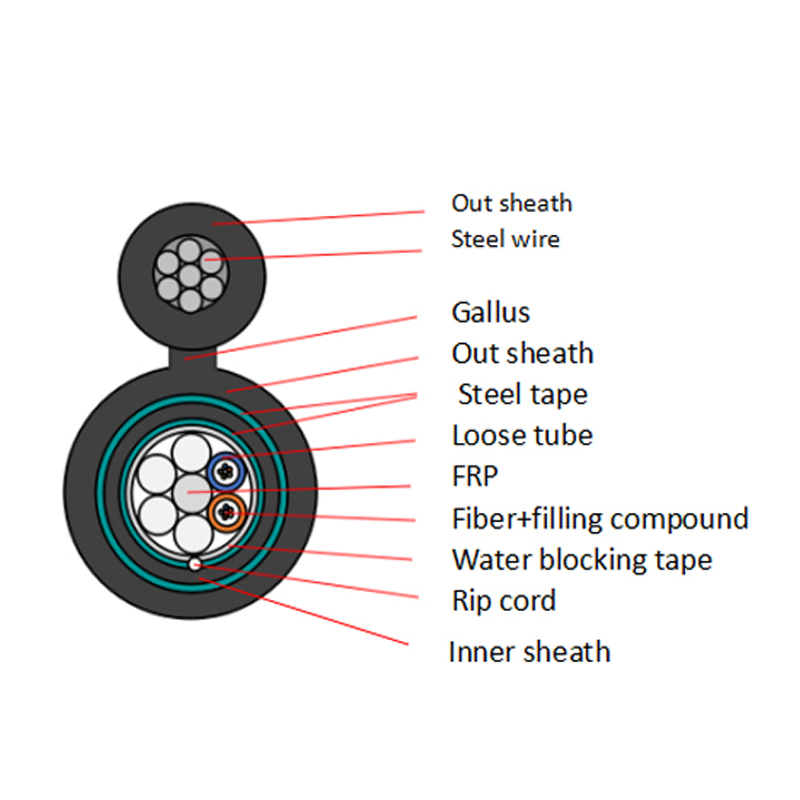

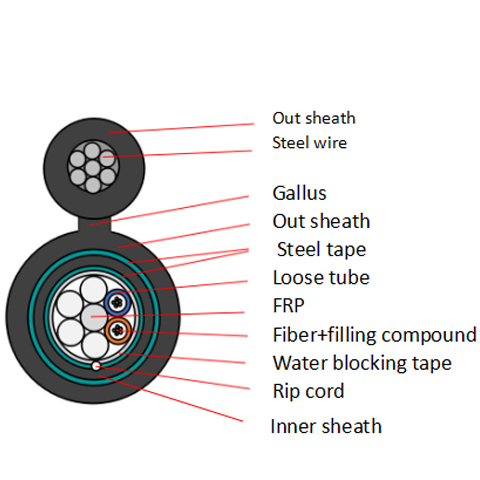

Structure details

Fiber count 24F
SM fiber Fiber type G652D core concentricity
MFD 8.6~9.8um cladding
Cladding diameter 124.8±0.7um Fiber colore Standard spectrum
Loose buffer Material PBT Color blue white yellow
Diameter 1.65±0.05mm Thickness 0.3±0.05mm
Filler rod Material PP Color white
Diameter 1.65  Qty 4
Strength member Diameter bright steel wire Diameter Φ1.8
Water blocking system Material water blocking tape
Inner sheath Material PE+steel tape Color black
Diameter 7.8±0.2mm Thickness 0.8±0.1mm
Rip cord Spec White 1110D*2 Qty 1
Gallus Material bright steel stranded wire Spec 1.0*7-3.0mm
Out sheath Material PE+steel tape Color black
Diameter 6.0±0.2*11.9±0.5
Thickness 1.6±0.2

Mechanical and environment performance

Tensile strength Short term(N) 6000N
Long term(N) 2000N
Crush load Short term(N) 3000N/100mm
Long term(N) 1000N/100mm
Bending radius Dynamic 20D
Static 10D
 Temperature -20℃~+70℃

Fiber Performance

Fiber type Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.24 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7


Packing material: Wooden drum.

Packing length: 2km per drum or customization.
